1、Equipment Overview:

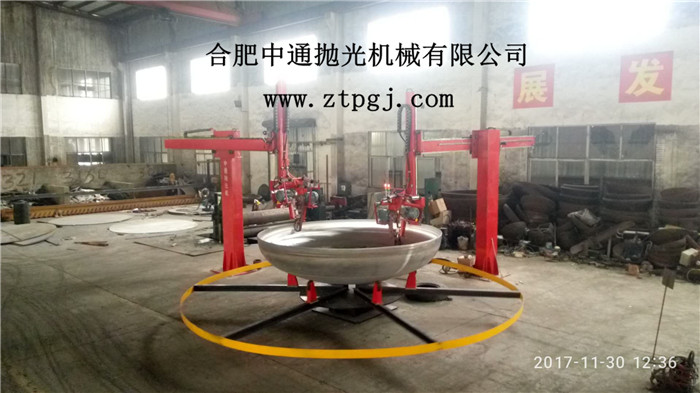

Specialized machine tool for rough grinding, fine grinding, wire drawing, and mirror polishing of the inner and outer surfaces of various heads. Different types of grinding heads can be designed according to requirements, using abrasive belts, flap discs, fiber wheels, hemp wheels, etc. to grind and polish various stainless steel products.
2、Application Range:
1. Various elliptical heads, dish heads, conical heads, spherical heads, flat heads
2. Used in chemical, food, biology, water treatment, pharmaceutical, dyeing and finishing, pressure vessel and other fields
3、Main Parameters
|
Item |
Specification |
Remarks |
|
Processing Diameter Range |
ᴓ3000-6000mm |
Adjustable according to customer products |
|
Abrasive Belt Specification (Width x Circumference) |
50*2700mm |
Determined by grinding head structure |
|
Abrasive Belt Grit |
60#～1200# |
(Optional) |
|
Workpiece Surface Roughness Ra |
≤0.1um, Brushed Matt, Mirror |
(Specific requirements depend on the process) |
|
Weld Reinforcement After Grinding |
0～0.5mm |
Smooth transition between weld and base metal |
|
Polishing Wheel Abrasive |
350*50*32mm |
|
