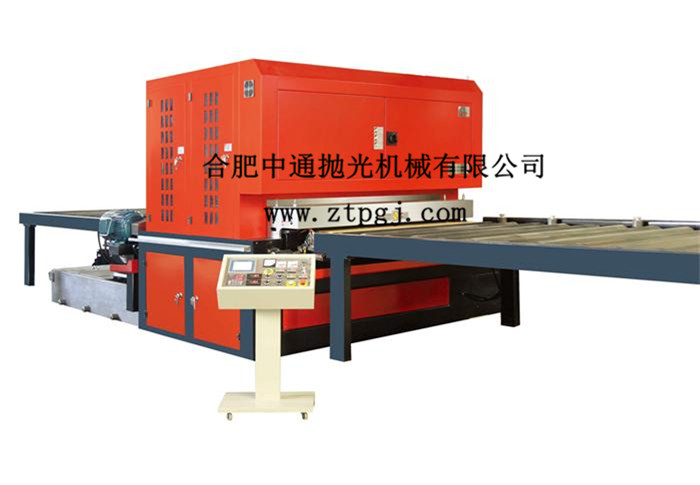

1Equipment Overview:

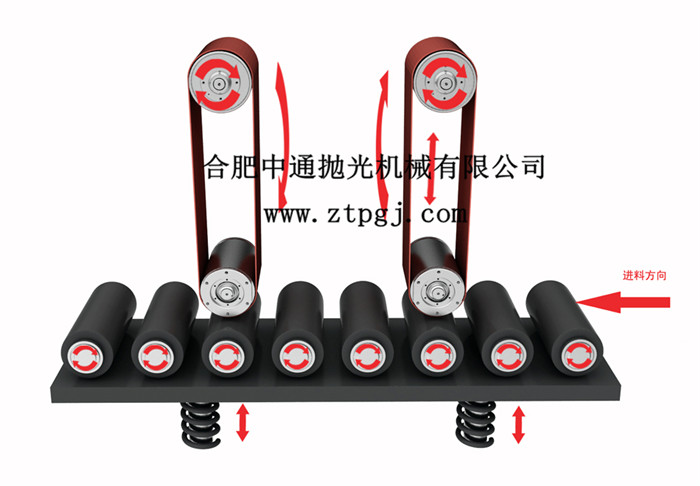

A machine specially designed for rough grinding, fine grinding, oil grinding and wire drawing, and mirror polishing of flat plates. Different types of grinding heads can be designed according to requirements, using abrasive belts, cloth wheels, etc. for grinding and polishing various stainless steel products. No acidic environmental pollution.
2Application Range:
1. Various stainless steel plates, composite plates, titanium plates, etc.
2. Used in fields such as chemical industry, food, biology, water treatment, pharmaceuticals, dyeing and finishing, pressure vessels, etc.
3 Main Parameters
|
Category |
Specification |
Remarks |
|
Processing Width Range |
Less than 2000mm |
Can be adjusted according to customer products |
|
Abrasive Belt Specification (Width x Circumference) |
2100*2700mm |
Determined by grinding head structure |
|
Abrasive Belt Grit |
120#～400# |
(Optional) |
|
Workpiece Surface RoughnessRa |

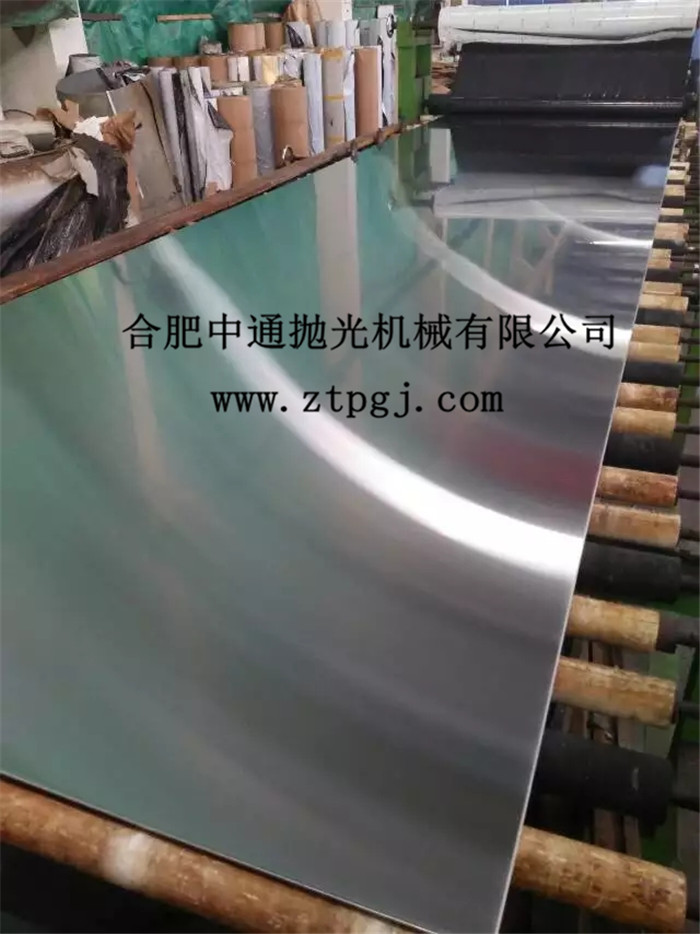

≤0.1um, Brushed Matt, Mirror |
(Specific requirements depend on process) |
|
Cloth Wheel Abrasive |
2000*400*80mm |
|
|
Non-polluting Environmental Protection Material |
|
|
