Tank Head and Shell Polishing Machine

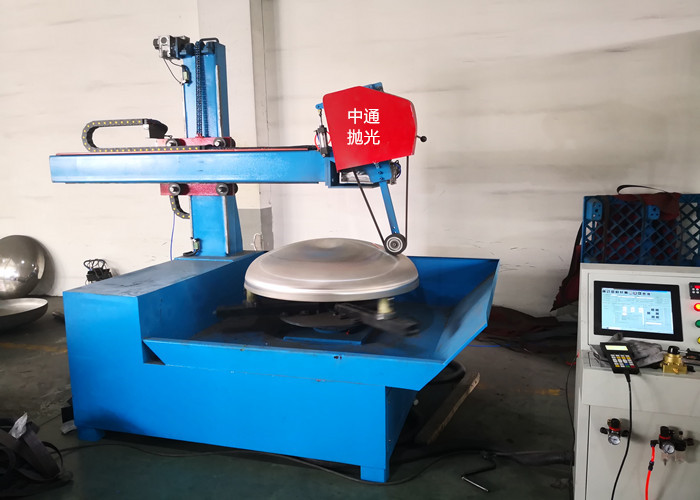

CNC Head Polishing Machine Model：ZT-701CNC
1Equipment Overview：
A machine tool specially designed for rough grinding, fine grinding, wire drawing and mirror polishing of various head inner and outer surfaces. Different types of grinding heads can be designed according to requirements, using sanding belts, flap wheels, fiber wheels, hemp wheels, etc. for grinding and polishing various stainless steel products.
2Application Range：
1、Various elliptical heads, dished heads, conical heads, spherical heads, flat heads
2、Used in chemical, food, biological, water treatment, pharmaceutical, dyeing, pressure vessel and other fields
3 Main Parameters
|
CategoryItem |
SpecificationSpecification |
RemarksRemarks |
|
Processing Diameter Range |
ᴓ300-1000mm/ ᴓ1000-3000mm/ ᴓ3000-6000mm |
Can be adjusted according to customer products |
|
Sanding Belt Specification (Width x Circumference) |
30*1700mm 、50*1880mm |
Determined by grinding head structure |
|
Sanding Belt Grit |
60#～1200# |
(Optional) |
|
Workpiece Surface RoughnessRa |
≤0.1um、Wire drawing matte、Mirror surface |
(Specific requirements depend on process) |
|
Weld Reinforcement After Grinding |
0～0.5mm |
Smooth transition arc between weld and base material |
|
Polishing Wheel Abrasive |
350*50*32mm |
|
