Tank Head and Shell Polishing Machine
1. Equipment Overview:

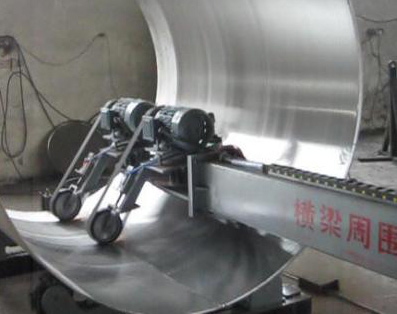

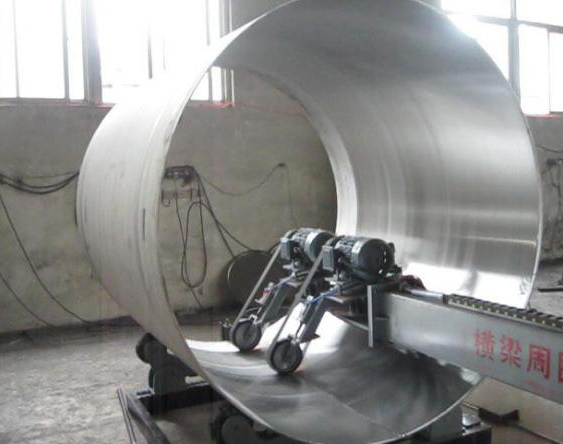

A machine tool specially designed for rough grinding, fine grinding, wire drawing and mirror polishing of various industrial tanks' inner and outer surfaces and longitudinal and circumferential welds. Different types of grinding heads can be designed according to requirements, using sanding belts, flap wheels, fiber wheels, hemp wheels, etc. for grinding and polishing various stainless steel tanks and pressure vessels.
2. Application Range:
1. Stainless steel tanks for food and chemical industry
2. Medical sterilizers, filters
3. Various vehicle gas cylinder bodies and heads
4. Internal and external welds at the ends of various large conveying pipelines
5. Internal and external surface grinding and polishing of nuclear chemical reactors and similar high-pressure heavy containers
6. Grinding and weld root cleaning of internal and external longitudinal and circumferential welds of nuclear chemical reactors and similar high-pressure heavy containers
7. Used in chemical, food, biological, water treatment, pharmaceutical, dyeing, pressure vessel and other fields
3. Technical Parameters:
Sanding belt specification (width x circumference): 50*1880mm, 100*2100mm (determined by the grinding head structure)
Processing tank diameter range: ᴓ300-3200mm (can be adjusted according to customer products)
Processing tank length range (horizontal polishing): 2000-6000mm (can be adjusted according to customer products)
Workpiece surface roughness Ra: ≤0.1um (specific requirements depend on the process)
