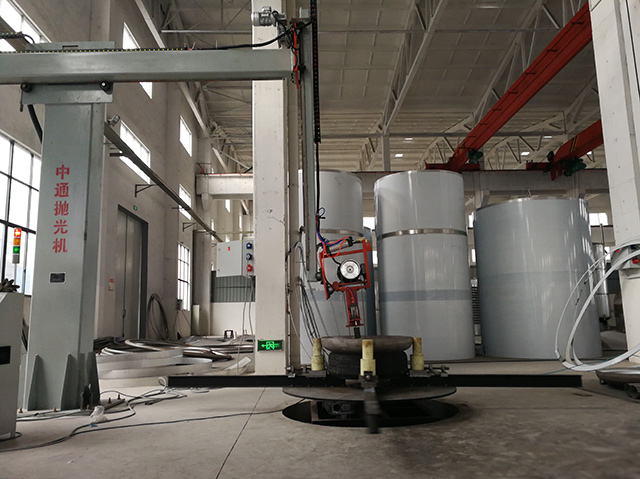

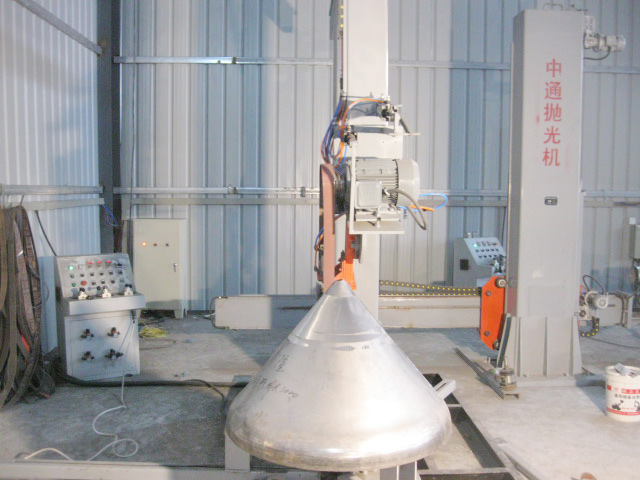

Tank Head and Shell Polishing Machine
1. Equipment Overview:
This equipment is specially designed for rough grinding, fine grinding, wire drawing and mirror polishing of various industrial tanks, head inner and outer surfaces and longitudinal and circumferential welds. Different types of grinding heads can be designed according to requirements, using sanding belts, flap wheels, fiber wheels, hemp wheels, etc. for grinding and polishing various stainless steel products.
2. Application Range:
This equipment is mainly used in chemical, food, biological, water treatment, pharmaceutical, dyeing, pressure vessel and other fields.
1. Medical sterilizers, filters
2. Various vehicle gas cylinder bodies and heads
3. Internal and external welds at the ends of various large conveying pipelines
4. Various elliptical heads, dished heads, conical heads, spherical heads, flat heads
5. Internal and external surface grinding and polishing of nuclear chemical reactors and similar high-pressure heavy containers
3. Technical Parameters:
Sanding belt specification (width x circumference): 50*1880mm (adjustable according to grinding head structure)
Processing head diameter range: 500-3200mm (can be customized according to customer products)
Workpiece surface roughness Ra: ≤0.1um (can be achieved by multiple grinding, specific requirements depend on process)
