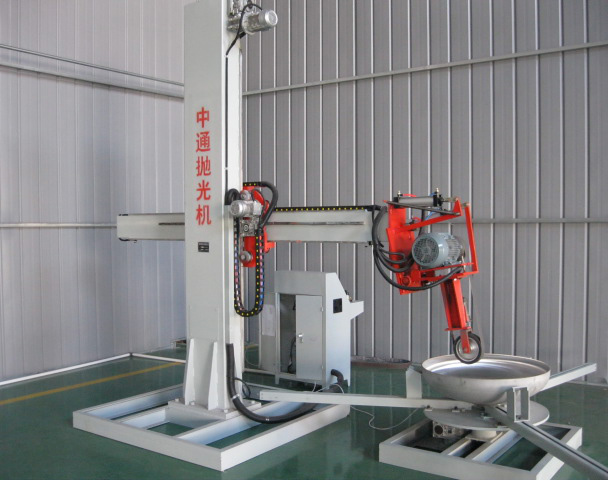

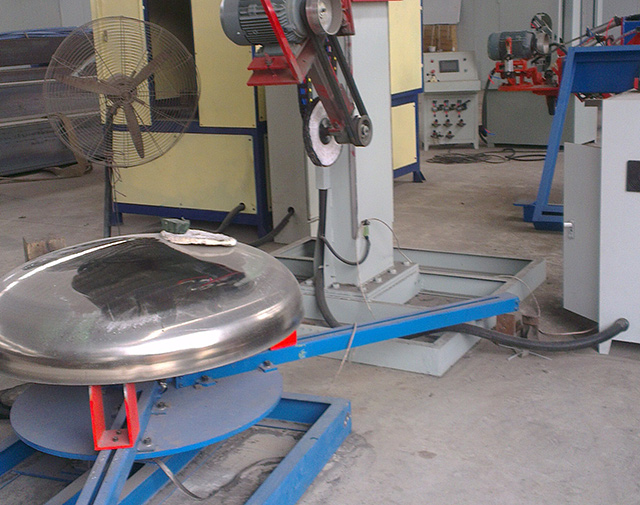

Main body of head polishing machine

1. Equipment Overview:

A machine tool specially designed for rough grinding, fine grinding, wire drawing and mirror polishing of various head inner and outer surfaces. Different types of grinding heads can be designed according to requirements, using sanding belts, flap wheels, fiber wheels, hemp wheels, etc. for grinding and polishing various stainless steel products.

2. Application Range:

1. Various elliptical heads, dished heads, conical heads, spherical heads, flat heads

2. Used in chemical, food, biological, water treatment, pharmaceutical, dyeing, pressure vessel and other fields

3. Technical Parameters:

Sanding belt specification (width x circumference): 50*1880mm (adjustable according to grinding head structure)

Processing head diameter range: 500-3200mm (can be customized according to customer products)

Workpiece surface roughness Ra: ≤0.1um (can be achieved by multiple grinding, specific requirements depend on process)
